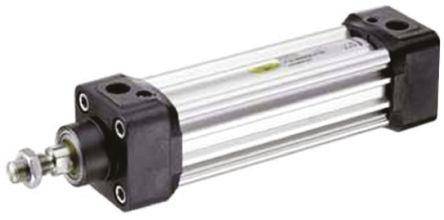

Pneumatic Profile Cylinder - P1D-S050MS-0160

$184.99
0 LEFT IN STOCK
Product description

Pneumatic Profile Cylinder - P1D-S050MS-0160. Parker Pneumatic Profile Cylinder 50mm Bore, 160mm Stroke. The innovative P1D is a future-proof generation of ISO cylinders. The Pneumatic Profile Cylinder - P1D-S050MS-0160 cylinders are double-acting, with a unique design of air cushioning. The light, stiff body extrusion has sensor grooves for simple and protected sensor installation.

Specifications

Length:   500mm
Rods:  Single

Manufacturer Series:		  P1D
Width:  69.4mm
Stroke:  160mm
VDMA Standard:  24562
Brand:  Parker
Bore:  50mm
Dimensions:  500 x 69.4 x 69.4mm
Force at 7 bar:  1155 (Return Stroke) N, 1374 (Outward Stroke) N
Port Connection:  G 1/4

Minimum Operating Temperature:		  -20°C

Maximum Operating Temperature:		  +80°C

Action:
Double

Cushioning Type: 		 Air

Height:
 69.4mm
ISO Standard:  15552


Pneumatic Profile Cylinder - P1D-S050MS-0160
