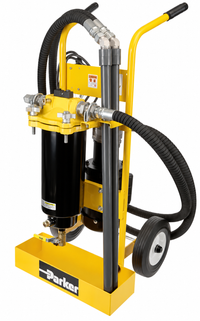

Front three-quarter view of Parker Racor FC-16-25-02 fuel filtration cart with filter housing, hoses and wheeled yellow frame. Rear view of Parker Racor FC-16-25-02 fuel filtration cart showing motor, coiled hoses, controls and wheeled yellow frame. Front three-quarter view of Parker Racor FC-16-25-02 fuel filtration cart showing the black filter housing, hoses and yellow wheeled frame.

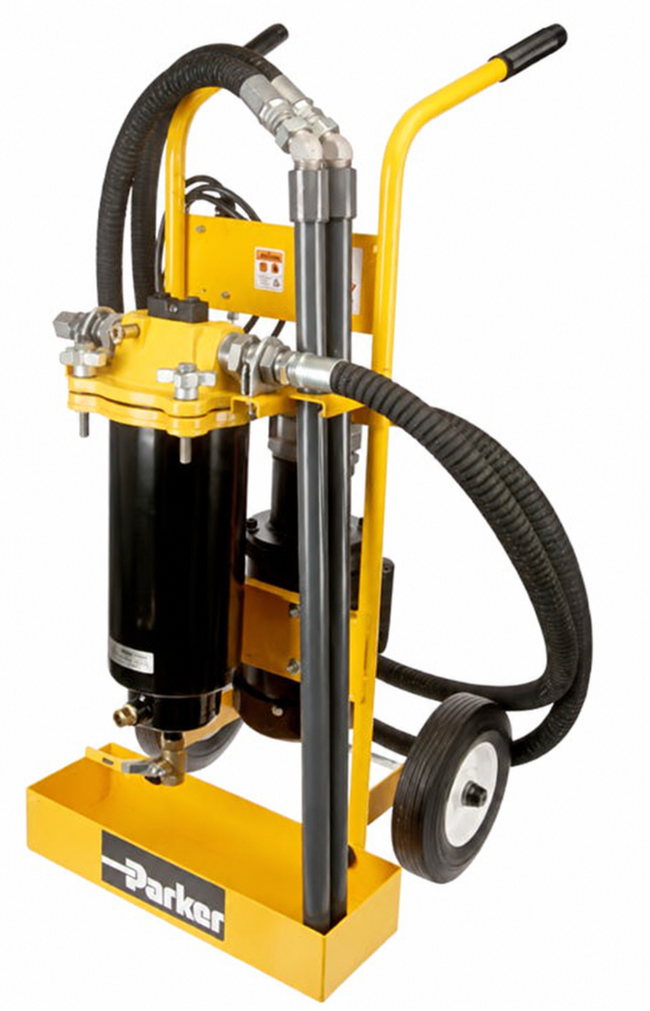

Front three-quarter view of Parker Racor FC-16-25-02 fuel filtration cart with filter housing, hoses and wheeled yellow frame.

Parker Racor FC-16-25-02 Portable Fuel Polishing & Filtration Cart

Product description

The Parker Racor FC-16-25-02 is a portable fuel polishing and filtration cart for diesel and biodiesel. It removes water and particulate contamination using an FBO-14 filter housing with a 25-micron coalescer/separator element. With a flow rate of up to 16 GPM (60.5 L/min), it supports fuel cleaning for storage tanks, generators, and diesel-powered equipment.

Applications

  • Diesel and biodiesel storage tanks
  • Standby generators and power generation equipment
  • Marine, mining, and construction equipment
  • Agricultural and transportation equipment
  • Equipment rental fleets



Technical specification FC-16-25-02
Fuel compatibility Diesel and biodiesel
Flow rate 16 GPM (60.5 L/min)
Filter housing FBO-14
Included filter element FBO60338
Filtration rating 25 micron
Operating temperature −8.1°C to 66°C
Power supply 110/220 V AC, 60/50 Hz, single phase
Motor power ¾ HP
Weight 48.5 kg (107 lb)
Hose length 11 ft (3.35 m)


Download FC-16-25-02 Technical Datasheet
